Calculator

Introduction

This case study is an introduction to making a specification with StateWORKS Studio that will be executed by an RTDB based application. The calculator known from Microsoft Windows systems is taken as the application. Although the power of the StateWORKS concept only shows up significantly in larger projects with many state machines, this case study, with a single state machine, raises a number of interesting issues, common to all StateWORKS projects.

The case study gives also an example of using the complement value. We will learn also that StateWORKS has a RtdbClient for C# programs.

get XML calculator files

Requirements

The calculator has the following keys: 0 1 2 3 4 5 6 7 8 9 . + - * / ± = C CE and 1-operand keys: 1/x x² sqrt. In any situation the calculator has to produce a correct result defined by the well known arithmetic rules. If the calculations is impossible the calculator has to display information helping the user to resolve the erroneous situation, like:

• On encountering a division by 0 the display should read Cannot divide by 0 and typing the key C should reset the calculator.
• On calculating the square root value of a negative operand the display should read Wrong operand.
• On erroneous operand or operation keys the display should read Reset (C) to continue or Clear (CE) to continue as appropriate.

Of course, any situation can be cleared using the main reset key C.

Design

The calculator control system

Before we start to think about a calculator state machine we should make a design of the calculator control system.

We may consider a calculator control as a system that reacts to keys performing all elementary actions. This approach is a dead end street leading to a very complex state machine that is difficult to handle.

We will define another way that is based on the observation that a calculator is a builder of strings that are executed when complete. The rules for handling such a calculator system are fairly simple:

• Parse the incoming keys and assign them to the appropriate control value.
• Complete an Expression string from incoming keys.
• Perform a calculation defined by the Expression string according to arithmetic rules, when encountering operator keys + - * / as well as the Equals key =. We notice that we need several calculation functions as the rule for a calculation after Equals key and addition and subtraction operators are different than for multiplication and division operators.

The RTDB based control

As we are going to define a calculator control realized by a StateWORKS run-time system, and in fact implemented by defining the specification, we have to take into account the RTDB objects used. The objects have specific control features that are used by the specification [1]. We will use only two types of objects: DAT and OFUN.

The functioning of an object DAT is described by the state transition diagram in Figure 1. After start-up, a DAT object is in the state UNDEF. The first data change forces it to go to the state CHANGED. If the DAT state is used (consumed) by another object, it goes to the state DEF. Effectively, it loops between the states DEF and CHANGED: any data changes force it to go to the state CHANGED, and if this event is used by another object, it returns to the state DEF.

Figure 1: DAT state transition diagram

The object OFUN is an interface for user-written functions. It is an input/output object, i.e., it is controlled by actions and generates control values. An action is an integer number that is passed to the called function as a parameter. The control values are integer numbers – return values of the called function.

As the control problem has been defined as string processing, we will use objects of type DAT for storing strings. The objects of type OFUN will be used to call Output Functions. The Output Functions will access the object DAT to do the actual data processing. Therefore, they are specified in an I/O Unit used by programming the Output Functions.

So, we have to design a system that recognizes incoming keys, builds a syntactically correct Expression string, and performs arithmetic operations when necessary. The task of the state machine is to call appropriate functions and handle erroneous situations caused by unexpected keys or calculation errors.

According to the StateWORKS design philosophy, we are going to specify a state machine that performs the control flow. The data flow will be realized by specific Output Functions: we will use parsers to do the job of constructing the operands as well as performing the calculations.

RTDB objects required

Before we continue, we should decide what objects are required for the Calculator control. At this moment, we see the following DAT objects:

• Key to store the entered keys
• Expression to store the Expression string to be processed
• Display to show the entered keys and the calculation result
• Result to store the last result (due to its double function, Display cannot store the result)

For specifying the state machine, we also need objects of type OFUN, which are the software interface to the Output Function. We need several functions shown in Table 2. Instead of providing an OFUN object for each function, we define only two of them, which we call:

• Ofu_Parse
• Ofu_Calculate

Later, we will add another OFUN object:

• Ofu_Expression

Each Output Function receives a parameter (the value of the Output name) which is used to select the called function.

Control values

The specification of the state machine requires a definition of control (input) values and output values. Analyzing the possible impact on the control, we distinguish a few groups of keys that define the control values in Table 1. Any key in a group has the same impact on the state machine behavior. For instance, typing the key + has the same effect as typing the key -. Similarly, typing the key sqrt has the same effect as typing the key 1/x. We discuss behavior and not the calculation result. The called function knows the specific key typed and performs the calculation, taking into account that key.

As we use the DAT data type for storing the Key value, a change of the object Key value is represented by the control value Key_CHANGED, which activates the output MatchKey calling the function Parse (see the object Ofu_Parse) with the parameter 1. The function Parse returns a value identifying the key.

The function Calculate (see the object Ofu_Calculate) returns a value indicating whether the calculation has been successful or failed.

The function ExpressionCheck (see the object Ofu_Expression) returns a value indicating whether the Expression is empty.

Appendix 1 shows the declarations of the Output Functions which will need to be programmed.

Parsing the key

The task of the state machine will be to supervise the keys typed at any time. First, the state machine decides whether the entered key make sense in a given situation. If unexpected the key may be ignored or should produce an info on the display. If the key is expected the state machine should decide what to do at that moment. The decision is very coarse; its is not the task of the state machine to decide which arithmetic operation to do. Output Functions return a value that corresponds to the result and this value is used by the state machine as a control value to supervise the calculation process.

Meaning	Keys	Object	Control value
Key change	-	Key	Key_CHANGED
Digit	0 1 2 3 4 5 6 7 8 9 .	Ofu_Parse	DigitMatched
AddSub	+ -	Ofu_Parse	AddSubMatched
MulDiv	* /	Ofu_Parse	MulDivMatched
Equals	=	Ofu_Parse	EqualsMatched
Sign	±	Ofu_Parse	SignMatched
Backspace	Backspace	Ofu_Parse	Backspace
1Op	1/x % sqrt	Ofu_Parse	1OpMatched
Clear	CE	Ofu_Parse	ClearMatched
Reset	C	Ofu_Parse	ResetMatched
No key (empty)	-	Ofu_Parse	AckMatched
Calculation ok	-	Ofu_Calculate	Ok
Calculation error	-	Ofu_Calculate	Error
Expression is empty	-	Ofu_Expression	ExprEmpty
Expression is not empty	-	Ofu_Expression	ExprNotEmpty

Table 1: Control values

The key role in the state machine execution will play the object Key which change will trigger the function MatchKey via the Output Function Parse. This function will return the control value Key_CHANGED (see Table 1). Any key change will trigger an action that will also clear the key; this is necessary to allow a repetition of the same key. Clearing the key will generate another Key_CHANGED control value but this time the function Parse will return an acknowledgment signal AckMatched which actually means “the key is an empty string”. AckMatched plays an important role in a specification, being used to terminate transitions.

Output names

The Output names define the functions (see Table 2) that are to be called as Input-, Entry- or Exit- Actions. All objects used are strings; hence the functions are parsers analyzing strings and transforming them only locally to float numbers for calculations. The functions are called using Output Functions Parse and Calculate. Later we will add another Output Function called Expression. An Output Function gets a parameter (Output name) which defines the specific function to be called by the Output Function. So, for instance getting the parameter 7 the Output Function Calculate will carry out a specific function AddToNumber.

Building operands

Typing a Digit key should activate a function AddToNumber that creates the operand. The function creates a string from the digits and a dot character. The string must have not more than one dot, no trailing zeros and a leading zero must be added if the first entered key is a dot.

Category	Function defined by Output name	OFUN	Parameter
Triggered by + - * / = keys	MatchKey	Ofu_Parse	1
”	AddToNumber	Ofu_Calculate	7
”	CalculateLast	Ofu_Calculate	6
”	CalculateAll	Ofu_Calculate	5
”	CalculateT	Ofu_Calculate	10
Triggered by other keys	ChangeSign	Ofu_Calculate	9
”	DeleteLastDigit	Ofu_Calculate	8
”	Calculate1Op	Ofu_Calculate	12
”	Reset	Ofu_Calculate	15
”	Clear	Ofu_Calculate	13
Auxiliary	DisplayResetMsg	Ofu_Calculate	4
”	DisplayClearMsg	Ofu_Calculate	3
”	ChangeOperation	Ofu_Calculate	14
”	ClearDisplay	Ofu_Parse	2
”	PrepareExpressionT	Ofu_Parse	3
”	CheckExpression	Ofu_Expression	1

Table 2: Output Functions

Calculating operations

The function that performs arithmetic operations: + - * / is a more complex one. To start with, we define two such functions: CalculateAll and CalculateLast that are results of the following observations: clicking on a key that triggers an arithmetic operation (+ - * / =) the function called gets a few possible strings that are illustrated by examples shown in Table 3.

The strings that are at any time to be processed require maximum none, one or two operations, whereas + - = may trigger up to two operations and * / may trigger max one operation. In principle, the function CalculateAll will be called if the keys + - = are used and the CalculateLast will be triggered by keys * or /.

The other functions are straightforward ones like: ClearDisplay or ChangeSign; their names define quite well their simple functionality.

Understanding the rules of operations that are to be carried out in the calculator we are able to start the specification of the calculator state machine that we have called Calculator.

String	Calculation	Number of operations
2.3+	do nothing	none
2.3+4.07*	do nothing	none
2.3+4.07+	add and continue with 6.37+	one
2.3+4.07=	add and terminate (result 6.37)	one
2.3+4.07*2*	multiply and continue with 2.3+8,14*	one
2.3+4.07*2+	multiply and add and continue with 10.44+	two
2.3+4.07*2=	multiply and add and terminate (result 10.44)	two

Table 3: Examples of basic calculations

State machine specification

We begin with a simple calculator with functionality limited to the four arithmetic functions represented by the keys + - * /. In next stages we shall expand it to a standard calculator corresponding more or less to the Windows one. But we improve on it, by adopting the normal operator precedence rules for arithmetic expressions, as in fact in the “scientific” mode of the Windows calculator. The projects should be opened in a StateWORKS development environment to see all the project details.

Simple calculator

The state machine CalculatorSimple is shown in Figure 2. The calculation is triggered by a change of the object Key. As this event should trigger the state machine in any state we put it in the Always section (see Figure 3). The discussion below refers to the specification details in the document Calculator.xml (note that this document applies to the full Standard calculator).

The Calculator has many Actions. Assuming that each action will be an Entry Action of a state the state machine will have a lot of states. Using the Mealy model we will as a rule need fewer states. We try to optimize the design using a mixed Mealy-Moore model. As a rule, the state machine is designed in such a way that an event triggers an Input Action in the present state and forces a transition to another state. The other state is a busy state whose function is to acknowledge the realization of the calculation function (see the discussion in the section “Parsing the key”). This acknowledgment is ANDed with the calculation result which determines the next done state. So, for instance if a digit key is entered (DigitMatched) in the state Init the Input Action ClearDisplay is performed and the state machine goes to the state AddToNumber where the Entry Action AddToNumber is performed. The end of the calculation forces the transition to the state Number.

Several keys (Backspace + / - * C) cause the Input Action to be done and then go the state Idle_Busy waiting there for the calculation acknowledgment. The state machine returns to the state Idle either directly (if the calculation result is Ok) or via Error or ErrorClear state if the calculation is erroneous; there are various different errors possible. The state machine waits in the error states for keys: C and/or CE returning eventually via Idle_Return to the state Idle.

In the error states we see an interesting use of the complement value (see [2]) replacing the long OR condition of all keys matched that are relevant in this situation. It is especially important if the number of keys grows for a more complex calculator.

The state machine has four done states Idle, Number, Error and ErrorClear where the state machines wait for keys. Other states are busy states where the states machine waits briefly for acknowledgment of the calculation.

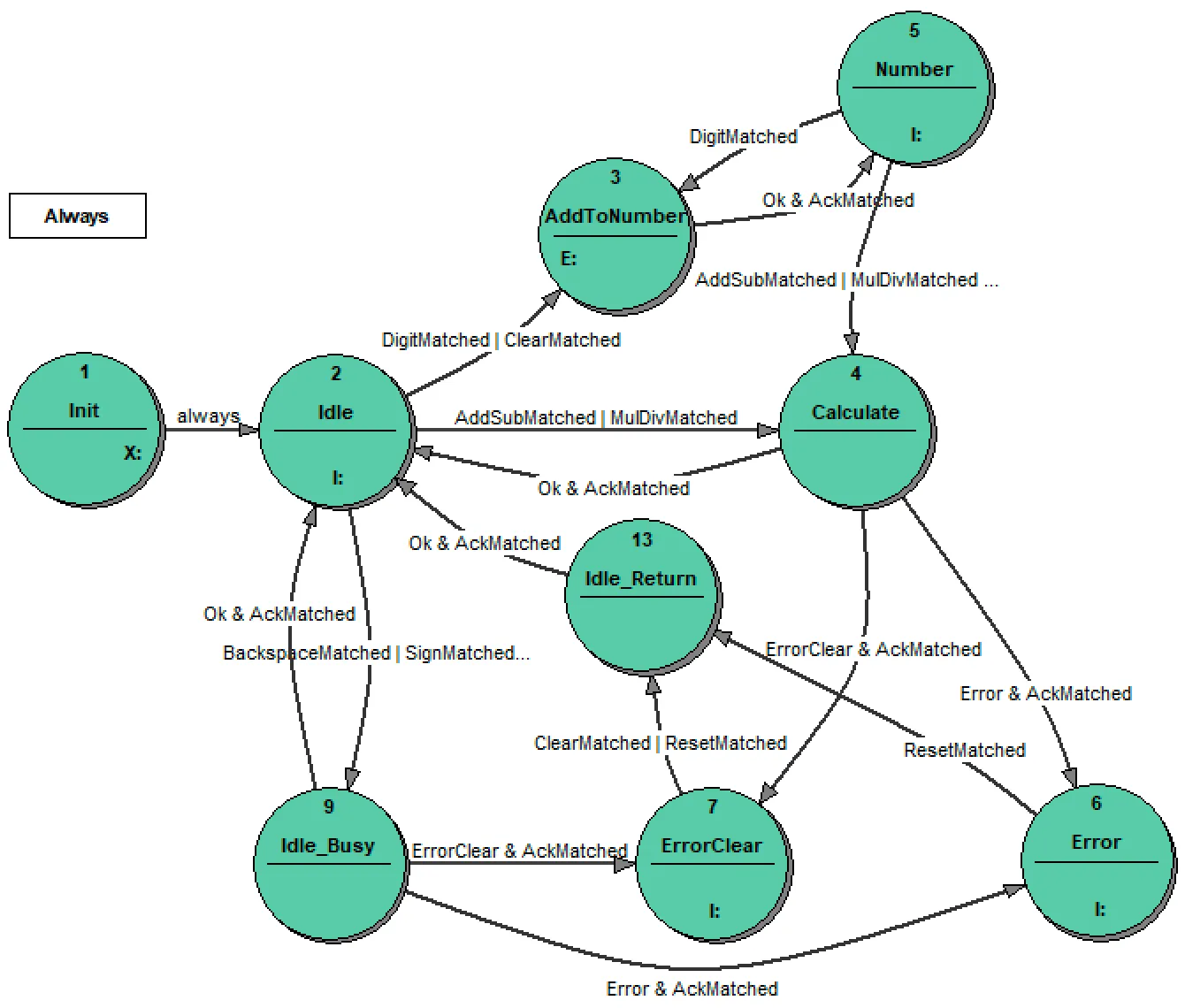

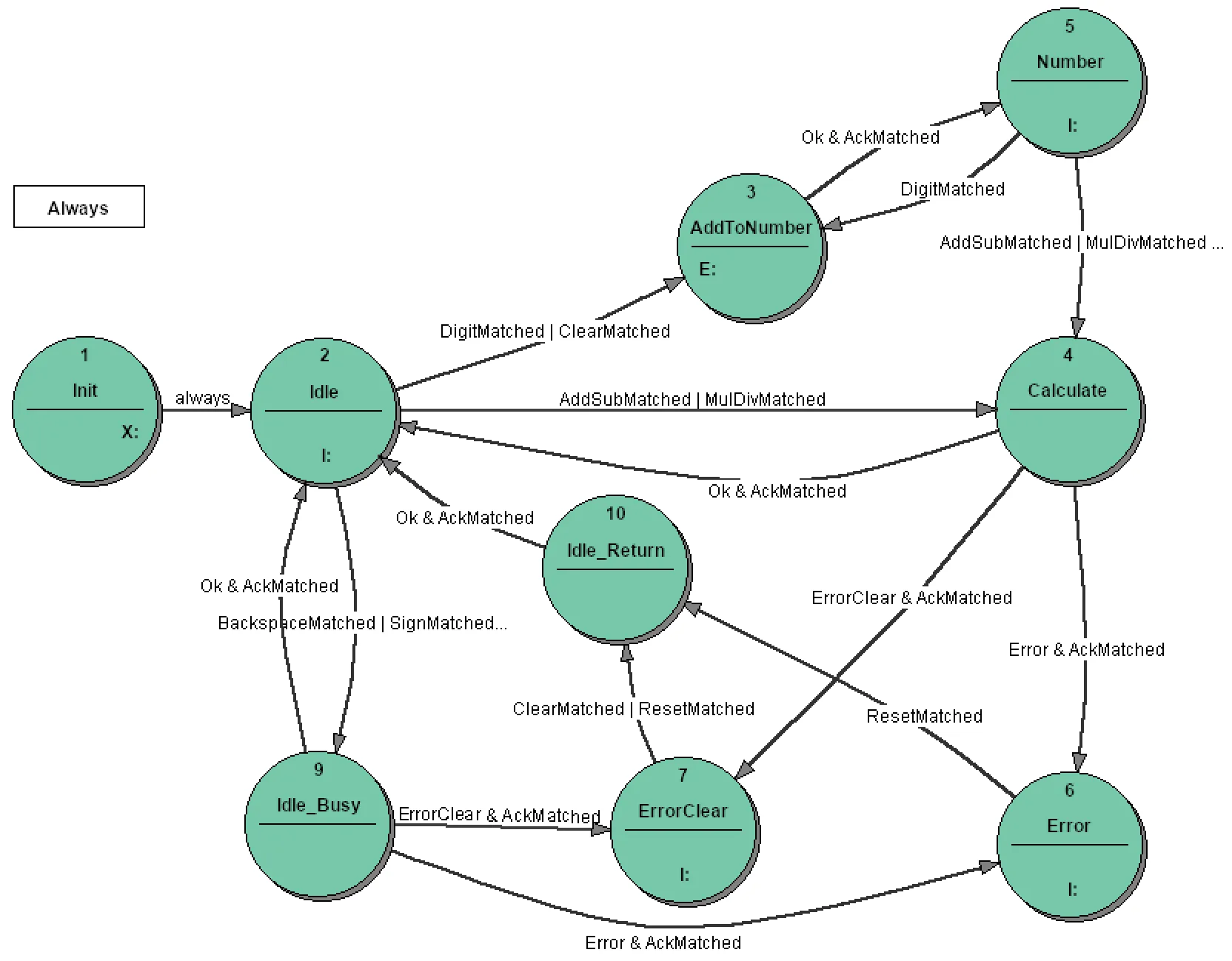

Figure 2: The Calculator Simple state transition diagram

To expand the functionality of this simple calculator we would like to add the cash register function and a few 1-operand functions (1/x % sqrt).

Extension by a cash register function

The cash register function is a quite challenging problem. We use this term as it reminds one of the functionality of the key + on a cash register which is used to repeat the last addition operation. The windows’ calculator has some more sophisticated functionality whose sense is not quite clear.

At least we have not found any description of that feature. On any calculator the use of the Equals key (=) ends the current calculation. On many calculators repeated use of this key is just ignored. On a Windows calculator the repeated use of the Equals key produces some results that seem at first glance difficult to understand. Testing it long enough you discover the algorithm: it repeats the last operation with the last operand, whereas the terms “last operand” and “last operation” apply to the last operation performed on the Expression string (do not forget we stick to the normal arithmetic priority rules). A possible reason for this feature is to calculate compound interest. Entering 1.06 * = one sees the square of 1.06, that is 1.1236. Further use of the = key then multiples the result by 1.06 again each time, and it can show that 12 years compound interest at 6% will double a sum of money. Te cash register function is illustrated by some examples shown in Table 4.

We decided to implement the algorithm used in the Windows calculator considering it as an interesting challenge, without being sure what is it for. We even suspect that it is a side effect of the calculation algorithm used and not a requirement.

Expression	Result	Expression T	Next results
2+7=	9	+7	16, 23
2+7+=	18	+9	27,36
2+7-=	0	-9	-9, -18
2+7*=	4	+2	6, 8
2-7*3=	-19	-7*3	-40, -61
5/2=	2.5	/2	1,25, 0.625
1.05*=	1.1025	*1.05	1.157625, 1.21550625

Table 4: Examples for the cash register function

To keep conformance with the general idea of processing strings in a calculator we decided to work out an ExpressionT string for the cash register function that can be derived from the Extension string used for calculations. Thus, if the Extension string changes the ExtensionT is actualized to be prepared at any time for a repeated sequence of the Equals string. To realize this functionality we need an object ExpressionT, a function PrepareExpressionT and a control value Expression_CHECKED signaling the change of the Expression. In addition, we need the information about the content of the Expression: if the Expression changes the function ExpressionCheck is called, and it has to be done at any time (see Figure 3). If the Expression is empty the ExpressionT is fixed and cannot be changed, otherwise it has to be changed according to the content of the Expression string. For processing of the ExpressionT we need an additional function CalculateT.

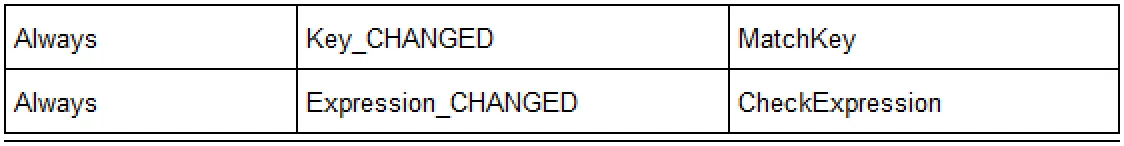

Figure 3: The Calculator state table: the section Always

To control the call to of the CalculateT t state machine gets an additional state CalculateT where the state machine goes always to the state Idle when the Equals key is matched. For details see the details of the specification of the state machine. The new state transition diagram is shown in Figure 4 and the full details are found in the document Calculator.xml.

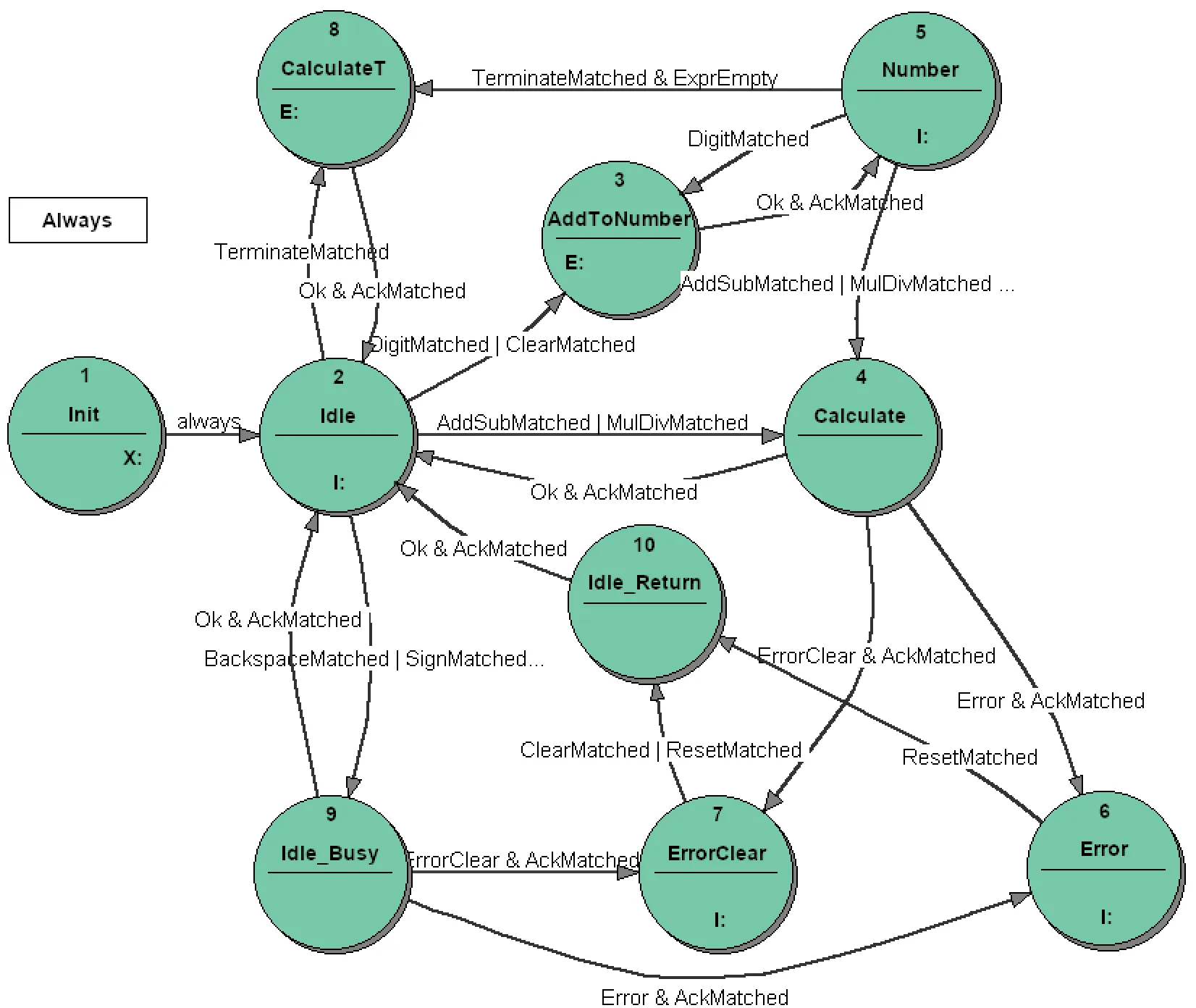

Figure 4: The Calculator Simple with added cash register function: state transition diagram

Standard calculator

The extension to 1-operand functions such as sqrt is relatively easy. These functions are simple calculations, so we call corresponding functions as input actions in the states Idle and Number. Figure 5 shows the state transition diagram of the complete Standard calculator. The 1-operand functions are treated as other functions: they trigger an Input Action in the present state and go the busy state where they wait for an calculation result. The only change in the state transition diagram is related to the error handling in the state Number. Depending on the calculation result and the user reaction (the use of a key C or CE) an 1-operand function may require a return to the state Number or a transition to the state Init. The additional states: Num_Busy, Num_ErrorClear and Num_Return are required to solve the additional requirements.

The details of the state transition diagram are in the document Calculator.xml and the full specification for an RTDB based execution system which performs the Calculator in the document Standard.xml.

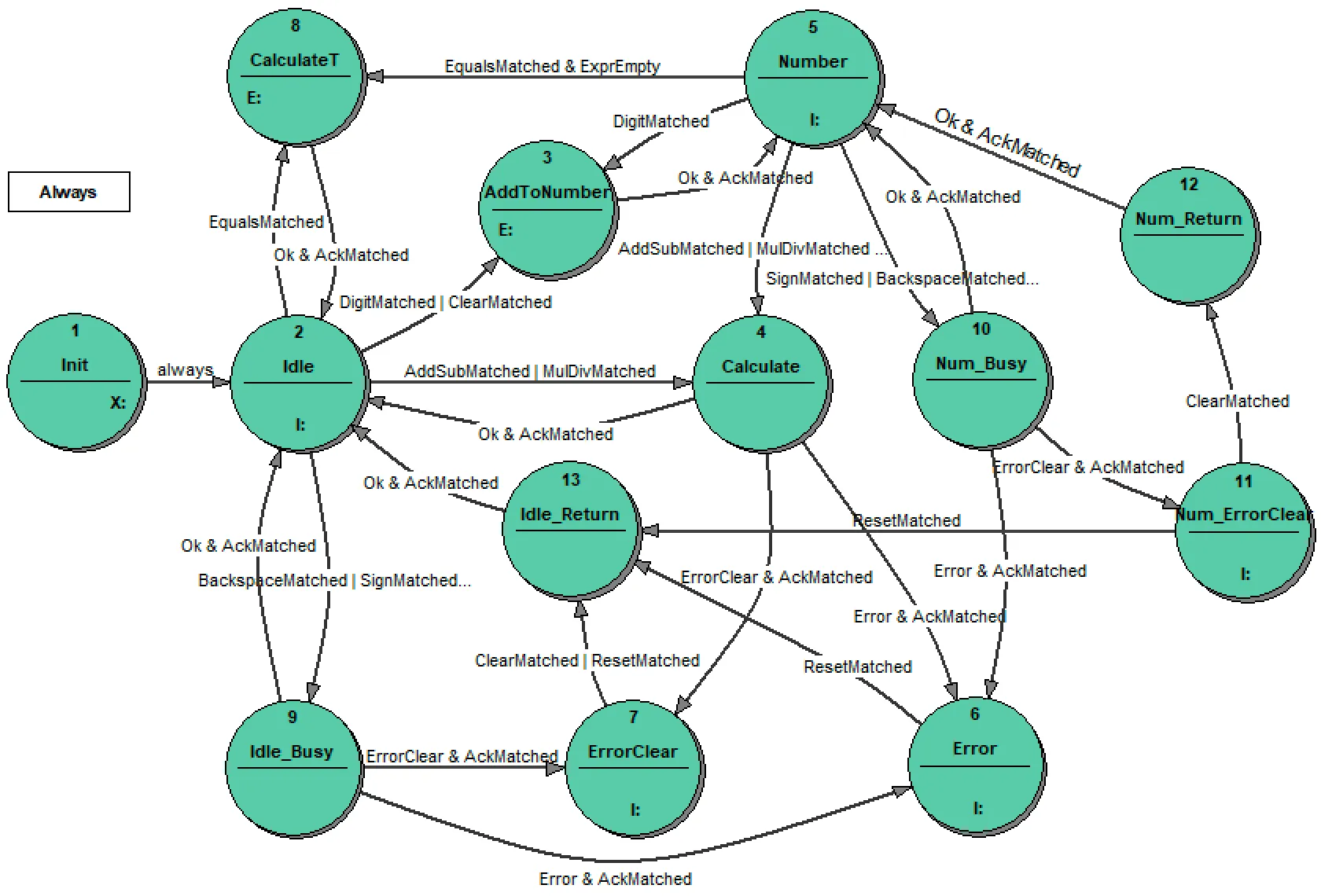

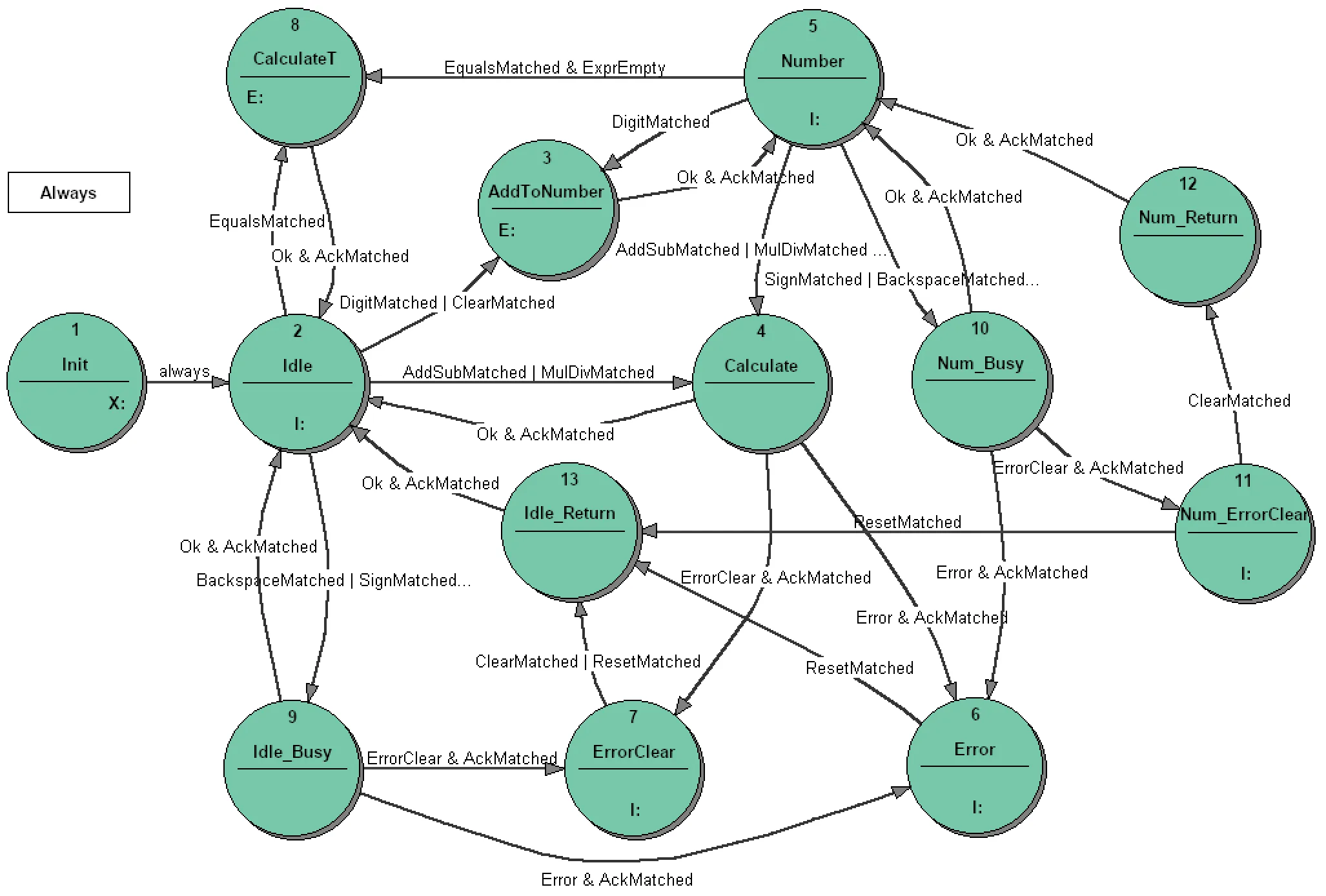

Figure 5: The Calculator Standard state transition diagram

Testing

To test the design we have written a Calculator User Interface CalculatorUI (see Figure 6).

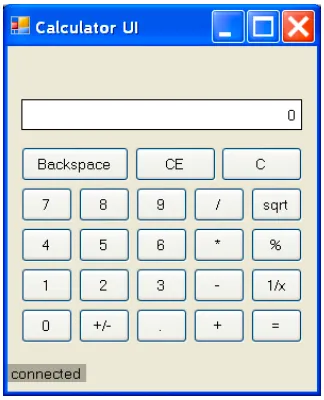

Figure 6: User interface for the Calculator

It is a program written in C#. The user interface starts the Calculator and connects via TCP/IP interface (RtdbClient DLL) to it. The Calculator is an RTDB based embedded application. It allows testing of Calculator functionality. This study has been devoted to the control problem of a Calculator. Therefore, when writing the calculation function we did not care about the numerical problems, just using the standard C++ arithmetic function for double float numbers.

Conclusions

The design, specification and implementation of a calculator illustrates well the concept of the partition of control and data flow based on the virtual environment idea.

The basic idea of the software solution for a calculator is to parse the string created by keys typed and execute it if appropriate. It sounds simple. The difficulty is the control of unexpected sequences of keys. We may say that the parser should react appropriately detecting the unexpected keys. The problem is that the definition of an unexpected key is context dependent. To recognize the context by conventional programming we may use flags and this is the source of problems: the control of flags leads to obscure programs that are difficult to develop and maintain. Experience shows that we may become crazy working with such software. Flags in a program mean that the software has a sequential character and the flags may be replaced by a state machine which is in a rule far easier to understand than the flags.

The state machine required by any software is a result of analysis and design. Before we start to specify a state machine we must work out a clear picture of the task that the state machine is to take over. The aim of introduction of the state machine in software is not to eliminate all “if then else” statements. No, the state machine is required to take over the sequential (state dependent) part of the software control. For instance, the state machine should not be involved into checking whether the divisor equals 0. If you start to define a state machine on that level you will get a monster that may be as difficult to understand as chaotic software with flags. In the design phase you have to identify the essential control problem that is to be realized by the state machine. The design is the most difficult and responsible part of the project. A design determines the quality of the software, in that case the quality of the control flow. The use of state machines in the software does not automatically guarantee a better result. The correct use of state machines is the aim.

Failures in the existing calculators demonstrate that the programming approach used has been not good. Even in such a not very complex software a programmer was not able to get a reliable result, i.e. calculators working always in an intuitively reasonable fashion. If correctly applied, the state machine concept allows us to produce software that works exactly as required. Any changes or expansions can be done fairly easily without any danger of crashing the existing part. This is a feature of StateWORKS valid when applied to much larger projects.

We have discussed the essential phases of a project:

• Defining the application
• Designing the control system
• Specifying the state machine

StateWORKS is a system generating a true executable specification. It is achieved by “transforming” the real signals into the virtual environment. The actual specification of the system behavior modeled by state machines is done using control values and action defined for the RTDB objects.

The state machine as designed could be a good starting point to expand its functionality to the Windows Scientific calculator. In principle, it requires addition of functions for the other 1-operand keys. This means that the state machine diagram should change only slightly if ever.

References

[1] Wagner, F. et al., Modeling Software with Finite State Machines – A Practical Approach, Auerbach Publications, 2006.
[2] Technical note “Complement control values in the VFSM concept”.

Appendix 1. Output Function declarations

int Parse( CItem* pOwner, int nVO )
// The function recognizes the content (character) of the object Key and
// returns an enumeration value characterizing the character.
// It is used also to perform some auxiliary functions like:
// ClearDisplay and PrepareExpressionT.
// Input: pOwner -> a pointer to the I/O UNit containing the RTDB objects
//        nVO    -> a parameter determined by the state machine Output name:
//                  see enumeration ParseFunction
// Output: Return value of the type ParseResult

int Calculate( CItem* pOwner, int nVO )
// The function selects a parser/calculation function to be performed.
// The selected functions require the Key value; if the Key value is
// an empty string the function returns immediately with
// CalculateResult_Ignored.
// Input: pOwner -> a pointer to the I/O UNit containing the RTDB objects
//        nVO    -> a parameter determined by the state machine Output name:
//                  see enumeration CalculateFunction
// Output: Return value of the type CalculationResult

int ExpressionCheck( CItem* pOwner, int nVO )
// The function recognizes the content of the object Expression and
// returns an enumeration value indicating whether its is empty or not.
// Input: pOwner -> a pointer to the I/O UNit containing the RTDB objects
//        nVO    -> a parameter determined by the state machine Output name:
//                  see enumeration ExpressionResult
// Output: Return value of the type ExpressionResult

---

The article was originally written by author F. Wagner in August 2009.
Here you can view the unedited file directly from the author: PDF
